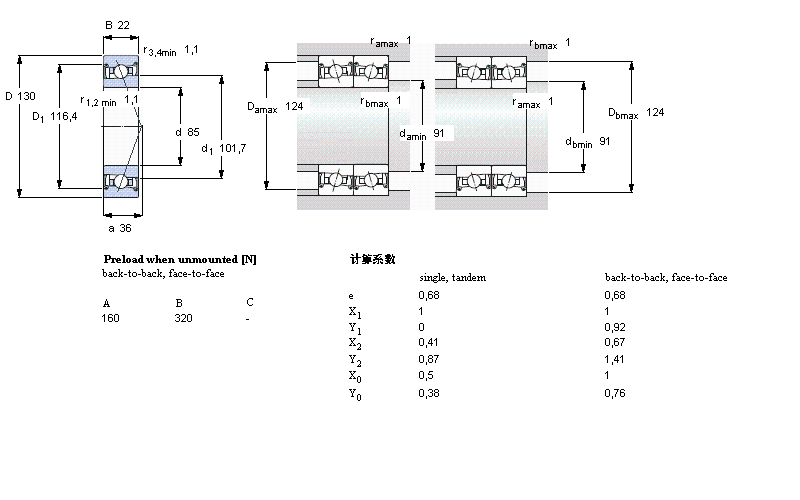

| 角接触球轴承, 精密, SC .. DB, sealed, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 85 | 130 | 22 | 34,5 | 39 | 1,6 | 13000 | - | 0,85 | SC7017 DB/P7 | - | |
