| 角接触推力球轴承 for screw drives, double direction | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||

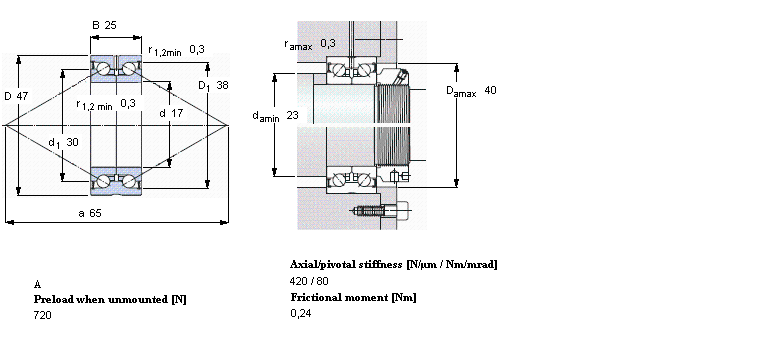

| 17 | 47 | 25 | 19 | 31 | 1,16 | 3800 | 0,22 | BEAS 017047-2RS | BEAS 17/47/C 7P60 | |
