BEAM020068-2Z/PE轴承价格BEAM020068-2Z/PE斯凯孚BEAM020068-2Z/PE轴承尺寸_苏州钜隆晟业角接触推力球轴承 for screw drives, double direction, for bolt mounting库存

型号：BEAM020068-2Z/PE轴承
品牌：SKF
系列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
内径：20 mm
外径：68 mm
厚度：28 mm

轴承BEAM020068-2Z/PE是我公司专业销售,我们能对BEAM020068-2Z/PE轴承为客户提供详细参数，需要SKF BEAM020068-2Z/PE最新规格、报价等资料请联系销售人员0512-62658883 ！


角接触推力球轴承 for screw drives, double direction, for bolt mounting
							公差, inner rings, outer rings, see also text
							Preload, see specific bearing, see also text
							Shaft fits, housing fits
							轴和轴承座公差

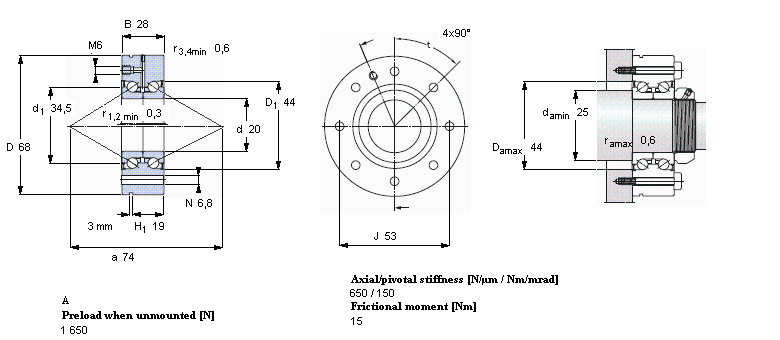

主要数据尺寸			基本负荷额定值		疲劳负荷限值	Attainable speed	体积	型号
			动态	静态				SKF	SNFA

d	D	H	C	C₀	P_u

mm			kN		kN	r/min	kg	-

20	68	28	26	46,5	1,73	6000	0,61	BEAM 020068-2Z/PE	BEAM 20/68/Z SQP60
