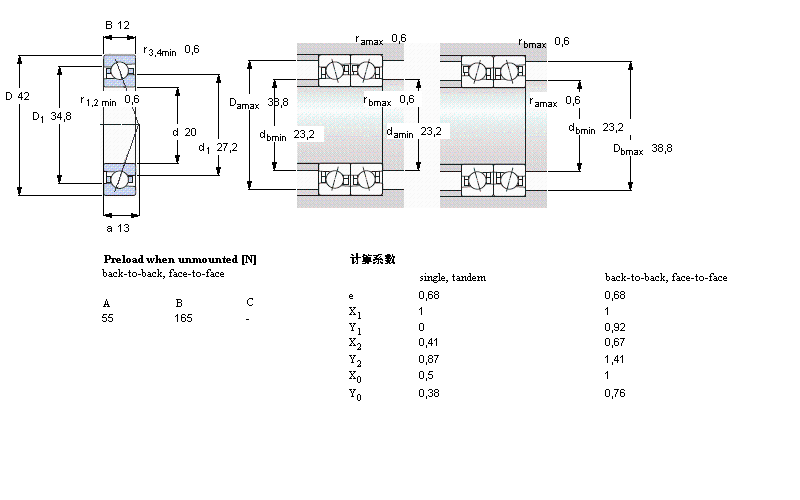

| 角接触球轴承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 42 | 12 | 6,76 | 2,9 | 0,122 | 50000 | 80000 | 0,056 | 7004 ACE/HCP4A | - | |
